| Scope of Work |
-
-
Domchanch Urban Water Supply Scheme with 5 Years of Operation & Maintenance
-
1. Infiltration Well
- Diameter of Well: 4.80 m
- Depth of Well: 5.90 m
- Jack Well cum Pump House
- Diameter of Jack Well: 6.0 m
-
2. Raw Water Pumping Machinery (1W + 1S)
- Discharge: 133.50 LPS
- Head: 57 m
- Hours of Operation: 16 Hours
-
3. Raw Water Main (Intake Well to WTP)

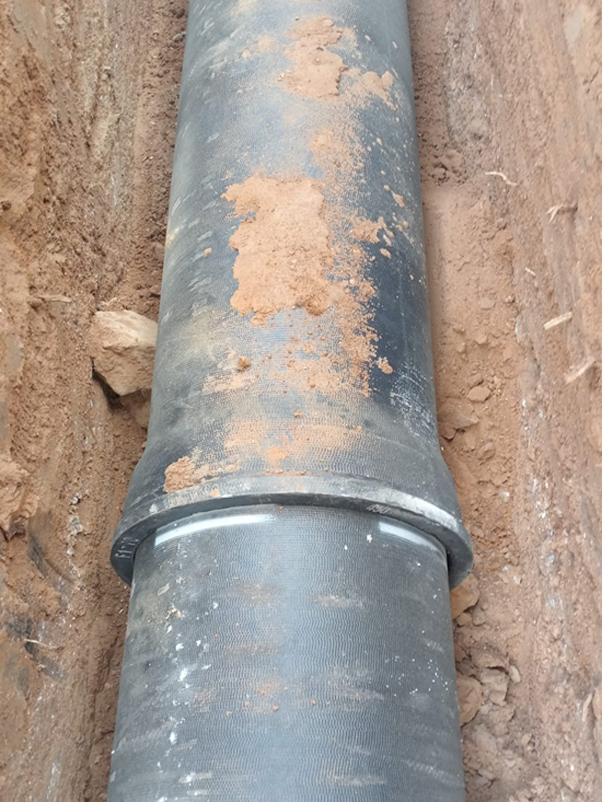

- Pipe Diameter: 450 mm DI Pipe
-
4. Water Treatment Plant (Proposed)
-

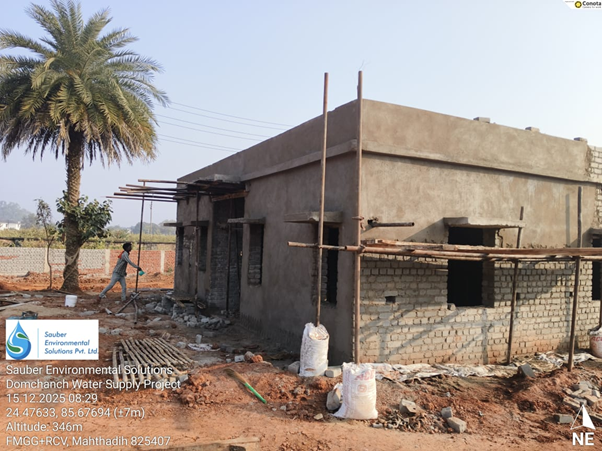

5. Staff Quarter
-
6. Clear Water Pumping Machinery (1W + 1S)
- Discharge: 133.50 LPS
- Head: 35.00 m
- Hours of Pumping: 16 Hours
-

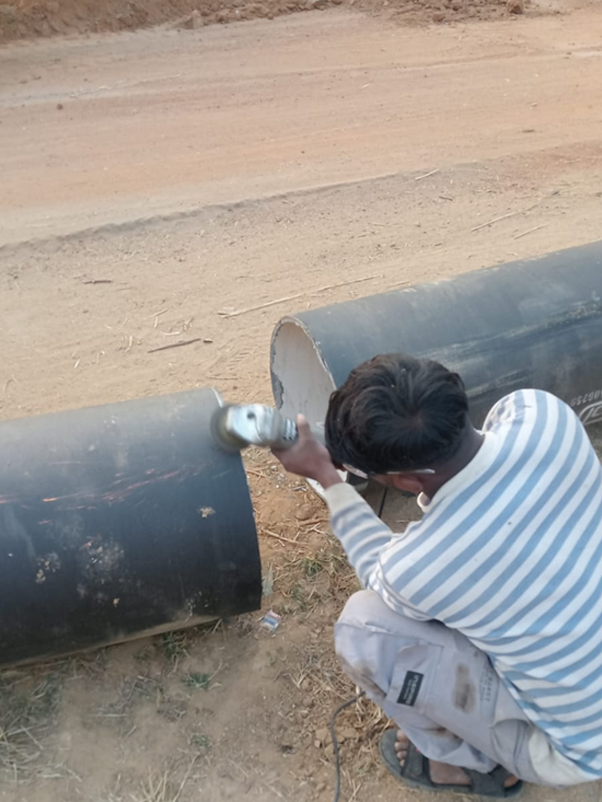

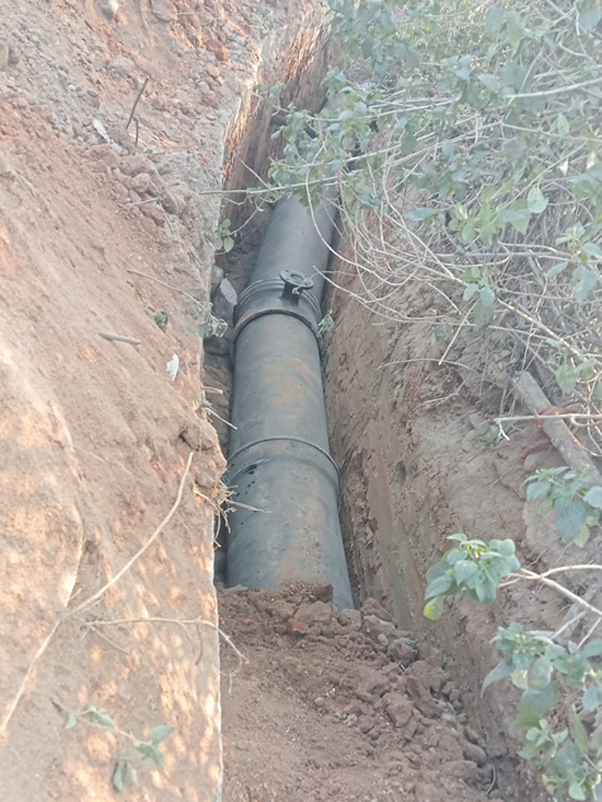

7. Transmission Main (Clear Water Rising Main)
- Pipe Diameter: 350 mm DI K-9 Pipe
- Total Length: 4904 m
-
8. Elevated Service Reservoir (ESR)
- Proposed ESR: 2 Nos
- ESR-1: 1950 KL, Staging Height – 29 m
- ESR-2: 1800 KL, Staging Height – 24 m
- Existing ESR-3: 170 KL, Staging Height – 21 m (DWSD Campus)
-

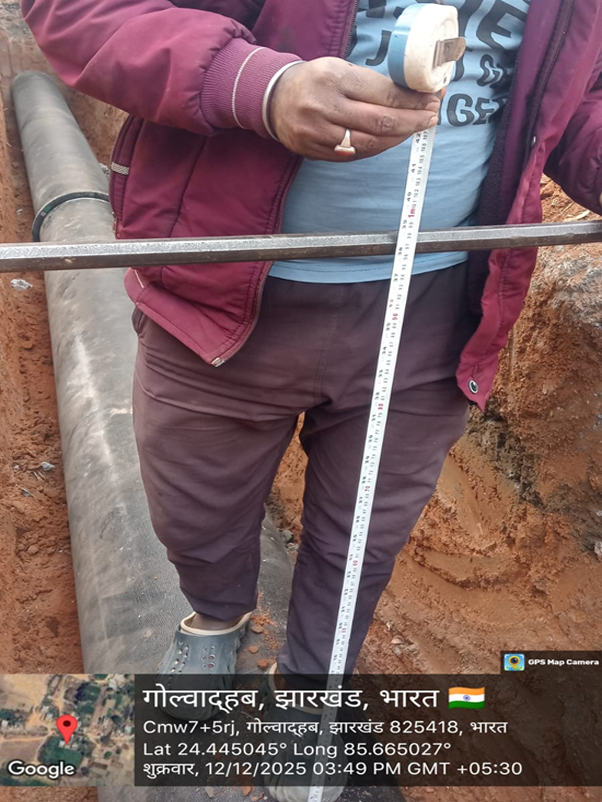

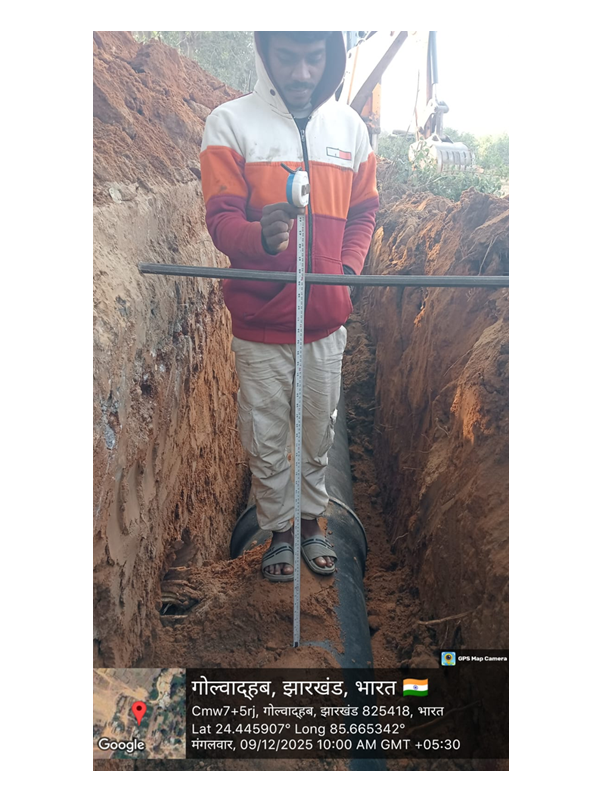

9. Distribution Network
- 100 mm DI-K7 – 26,952 m
- 150 mm DI-K7 – 6,733 m
- 200 mm DI-K7 – 6,004 m
- 250 mm DI-K7 – 2,787 m
- 300 mm DI-K7 – 815 m
- 350 mm DI-K7 – 601 m
- 400 mm DI-K7 – 1,934 m
- 450 mm DI-K7 – 43 m
-

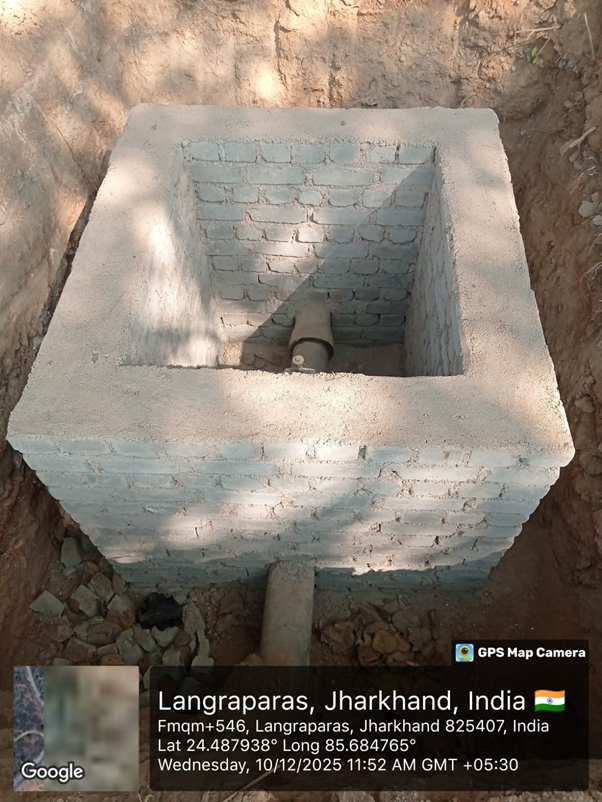

10. House Service Connections
- Total Connections: 7,161 Nos
-
11. NH Crossing
-
12. Railway Crossing
-
SCADA & Automation
|
