Drinking Water & Sanitation Department, Divison Hazaribagh

Drinking Water & Sanitation Department, Divison Hazaribagh - Water Supply Project

Client Name	DRINKING WATER & SANITATION DEPARTMENT GOVT. OF JHARKHAND
Project Location	Hazaribagh
Scope of Work	Detailed survey, designing and drawing, Construction of R.C.C. Intake Well cum Pump House, R.C.C.Gangway 50 M long and 3.00 M wide, 4.50 MLD capacity Conventional Water Treatment Plant, RCC Elevated Service Reservoir (i) 1.75 Lakh Litre capacity 12.0 M Staging, (ii) 8.0 Lakh Litre capacity 14.0 M Staging, (iii) 2.50 Lakh Litre capacity 14.0 M Staging, Staff Quarter, Compound wall, Supplying and laying Raw and Clear Water rising main and Distribution Network, House Connection, Supplying and Installation of VT and Centrifugal pump motor five years operation & maintenance with allied works etc. all complete job for Chhuthari Katia (Barkangango) Rural Water Supply Scheme under D.W. & S. Division Hazaribagh on turnkey basis.”

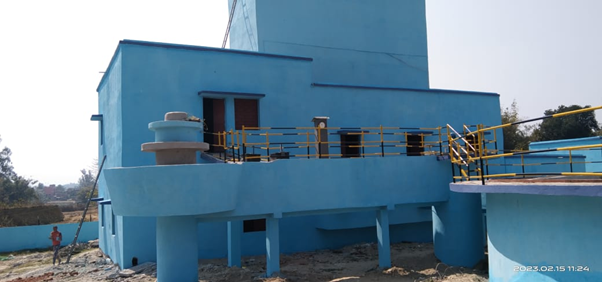

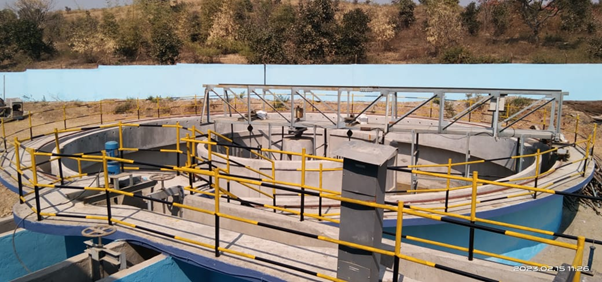

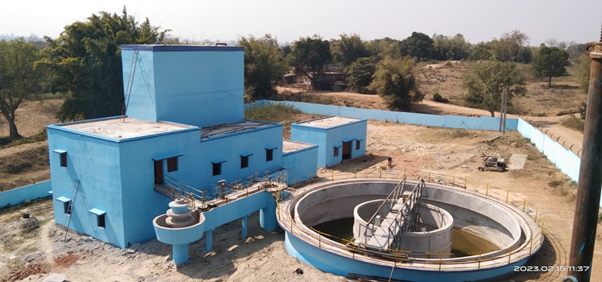

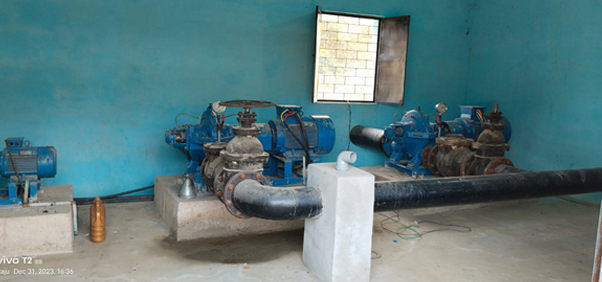

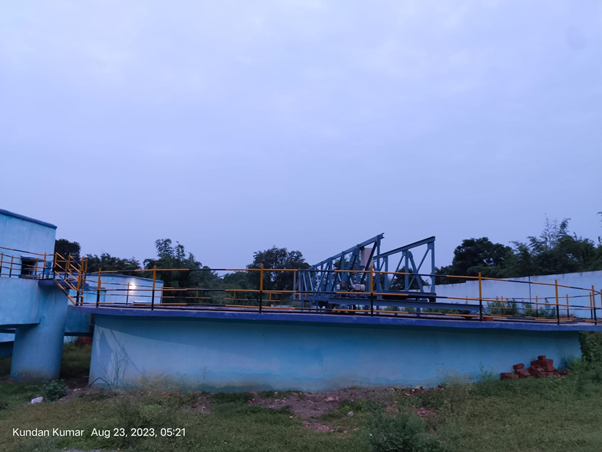

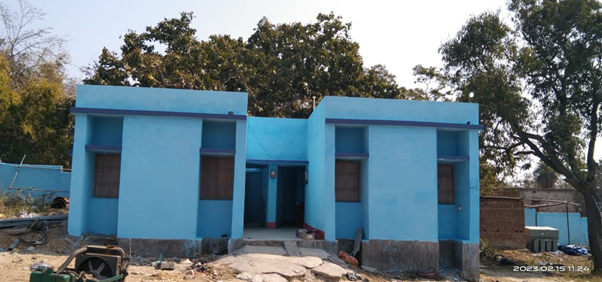

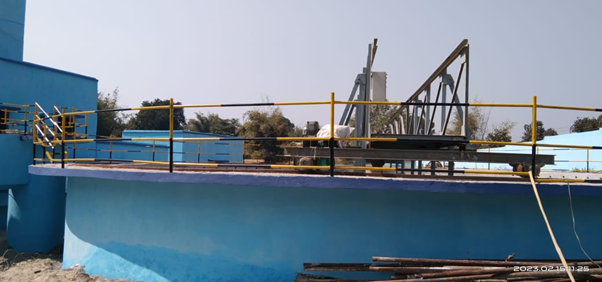

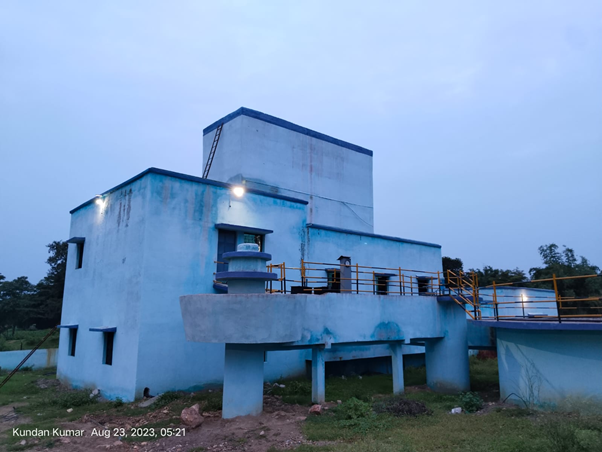

Brief Scope of Work of Project	R.C.C. Gangway : 50 metre length and 3.00 Meter Wide Supplying & laying of Pipeline : ( 100 mm to 350 mm dia ) – 78063.0 mts E.S.R.: (i) 1.75 Lakh Litre capacity 12.0 M Staging (ii) 8.00 Lakh Litre capacity 14.0 M Staging (iii) 2.50 Lakh Litre capacity 14.0 M Staging R.C.C Intake Well: 5.00 M dia ( Intake well with pump house) Clear water Pump – C.F Pump.- (1W +1S) - (i) 420.0 LPM, discharge and 35 M Head - 2 nos. (ii) 2740.0 LPM, discharge and 80 M Head - 2 nos. Raw water Pump – V.T. Pump.- (1W + 1S) - (i) 3130.0 LPM discharge and 60 M Head – 2 nos. Water Treatment Plant : 4.50 MLD (Conventional) One unit of Staff Quarters
